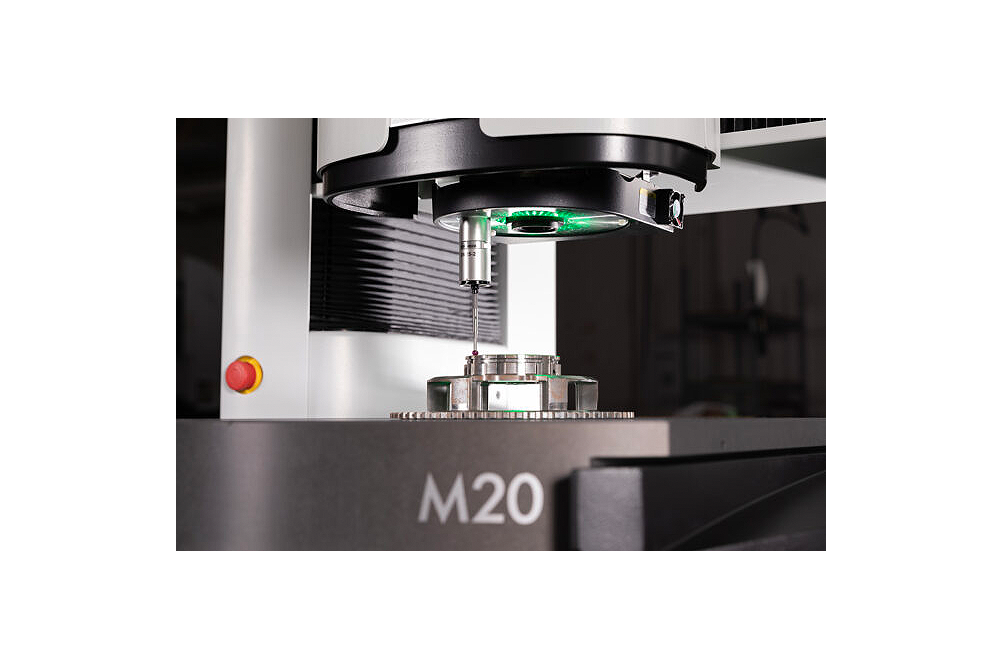

SMARTSCOPE M-20
SMARTSCOPE M-20
Benchtop 3D Multisensor Dimensional
Measuring System with Floor Model Capacity
SmartScope® M20 is the next evolution of the worldwide standard in 3D multisensor metrology.
The patented IntelliCentric™-M Optical System features fully telecentric fixed lens optics and VIRTUAL ZOOM™ technology, paired with a high-density 20 MP digital metrology camera and a built-in electronic aperture, delivering an ultra-high-resolution image with low distortion – perfect for high-speed edge detection metrology.
Ultra-High-Resolution Images – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – Compact elevating bridge design with machined in squareness for built-in accuracy
Multisensor Versatility – Optional TP-20 and TP-200 touch probes, SP-25 Scanning Probe, Feather Probe™, Through-the-Lens (TTL) Laser, Rainbow Probe™, TeleStar® Probe
Technical Data
XYZ Travel (mm)
Standard: 300 x 300 x 250
Optics
Standard: Fixed optical magnification with digital zoom, M 11.5 standard lens
Optional:
M 20.10 Wide Field-of-View / Long Working Distance
M 6.3 High Magnification
Focus Grid Projector
Illumination
Standard: Substage LED profile, coaxial LED surface, SmartRing™ LED ring light (green)
Tactile Sensors
Touch Probe →
Scanning Probe →
Feather Probe →
Non-contact Sensors
Through-the Lens (TTL) Laser →
Rainbow Probe →
TeleStar Probe →
Accessories
