SMARTSCOPE E-7
SMARTSCOPE E-7
Benchtop Fully Automatic 3-Axis Video Metrology System
SmartScope® E7 sets the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™-E Optical System and VIRTUAL ZOOM™ provide a high resolution image engineered for video edge detection metrology.

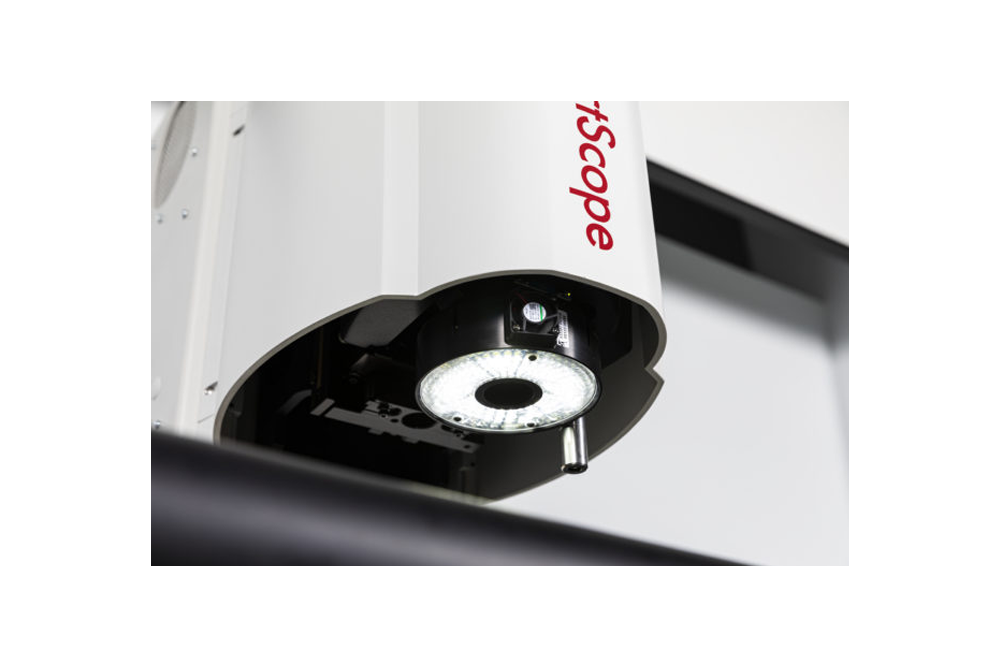

Advanced Lighting – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – A heavy-duty cast base and integral compound stage with Y-axis center drive provides stability
Multisensor Versatility – Optional TP-20 and TP-200 touch probes
Technical Data
XYZ Travel (mm)
Standard: 250 x 150 x 200
Optional: Extended X axis, 300 mm
Optics
Standard:
Fixed optical magnification with VIRTUAL ZOOM, E 8.10 standard lens
Optional:
E 4.5 high magnification lens, E 16.20 wide field-of-view / long working distance lens
Illumination
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light
