SMARTSCOPE E-45
SMARTSCOPE E-45
Floor Model Fully Automatic 3-Axis Video Metrology System
SmartScope® E45 sets the standard for 3-axis video measurement performance.
The fixed lens IntelliCentric™-E Optical System and VIRTUAL ZOOM™ provide a high resolution image engineered for video edge detection metrology.

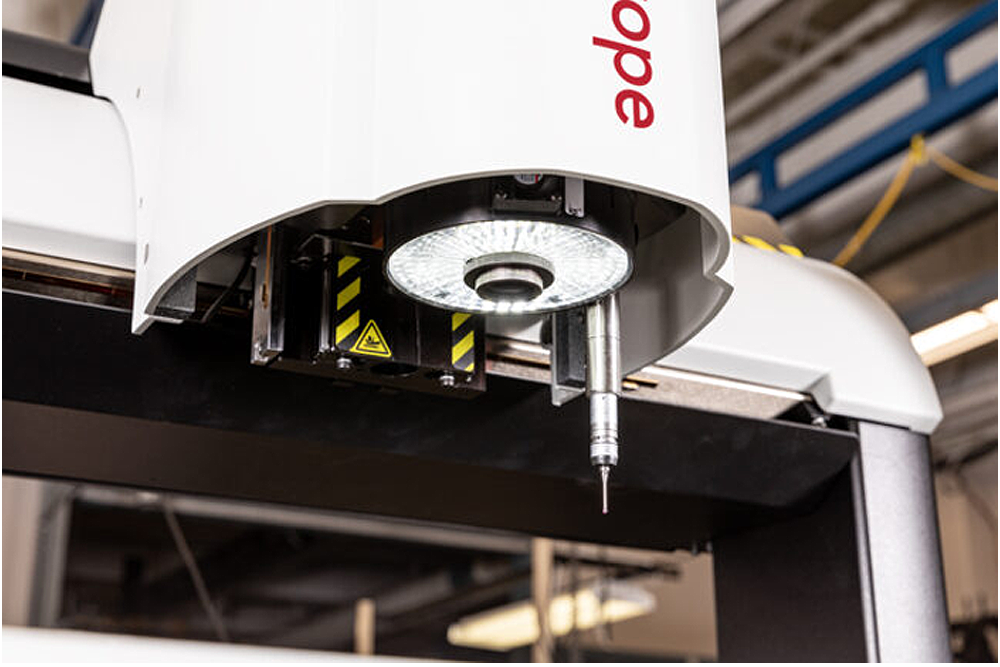

Advanced Lighting – All LED coaxial, substage profile, and SmartRing™ light illumination comes standard
Sturdy, Stable Construction – Parts move on a precision DC motor-driven Y-axis stage while the optics travel in the X-axis mounted on a rigid bridge support structure for metrological integrity.
Multisensor Versatility – Optional TP-20 and TP-200 touch probes
Technical Data
XYZ Travel (mm)
Standard: 500 x 450 x 200 mm
Optional: Extended Y axis, 610 mm; extended Z axis, 300 mm
Optics
Standard:
Fixed optical magnification with VIRTUAL ZOOM, E 8.10 standard lens
Optional:
E 4.5 high magnification lens, E 16.20 wide field-of-view / long working distance lens
Illumination
Substage LED profile, coaxial LED surface, SmartRing™ LED ring light
