Innovative Large Field-of-View 3D Multisensor System

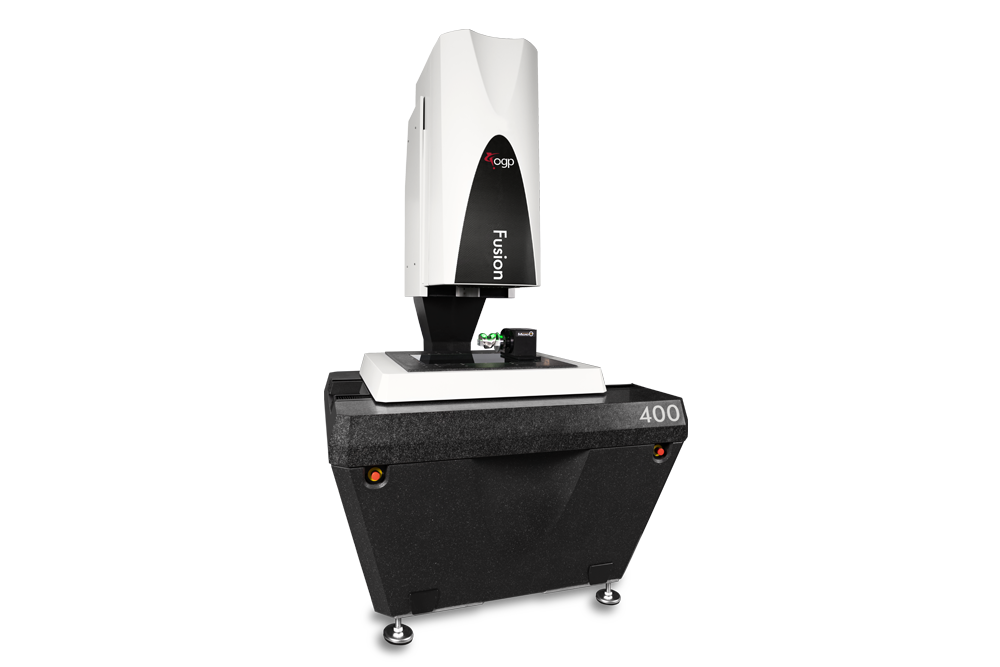

Fusion® 400 systems from OGP® are 3D capable, high accuracy large field-of-view (LFOV) multisensor floor model systems with a measuring range of 400 x 300 x 250 mm.
Optics – Dual optical paths with an instantaneous magnification change between a low mag with 100 mm viewing area and high mag for small feature measurement and autofocus, fully telecentric for image accuracy.
Stable Platform – Solid cast base with a granite surface plate and compound stage allow for extremely accurate measurements.
Multisensor Versatility – Optional Scanning Probe, TeleStar® TTL Laser, Rainbow Probe, and 4th and 5th axis rotary indexers. All sensors share are placed precisely on the optical centerline by the patented rotational deployment mechanism
Productivity – 3D CAD-based ZONE3 metrology software, with integral AutoID and FeatureExtractor functions for one touch measurement. Full field image processing and high-speed cameras allow entire scenes to be measured instantly
Technical Data
XYZ Travel (mm)
Standard: 350 x 250 x 250
Optics
Telecentric, dual optical magnification with 100 mm low mag and 20 mm high mag field of view
Illumination
Profile – Collimated, full field, LED
Surface – Square-on internal
Oblique Surface – Oblique ring light with 8 programmable segments
Non-contact Sensors
Rainbow Probe →
TeleStar Plus Through-the-Lens (TTL) laser →
Accessories
