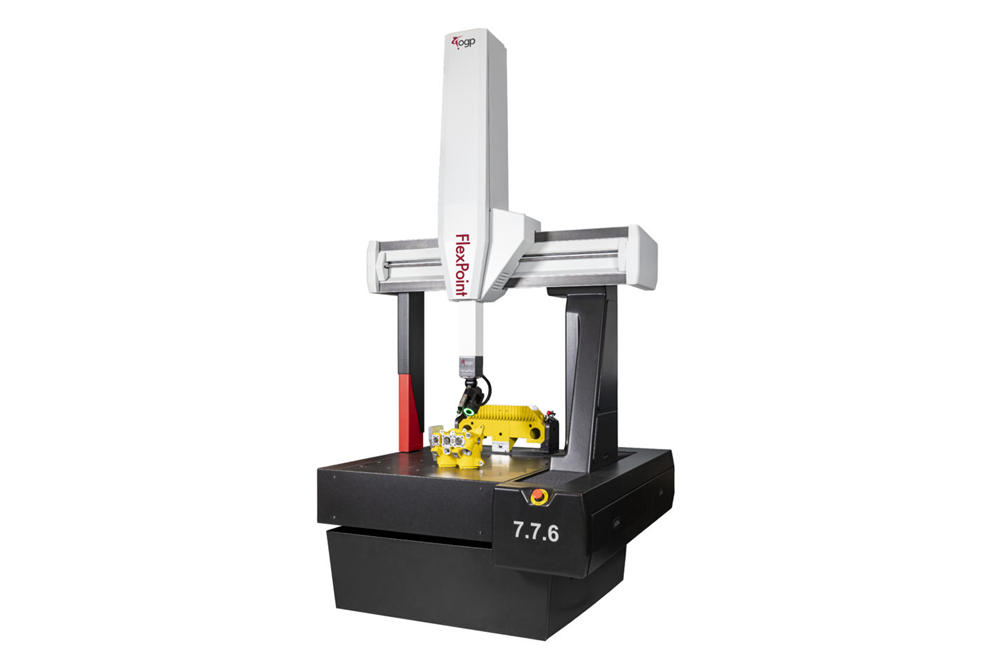

FLEXPOINT
FLEXPOINT
A unique blend of precision, flexibility, and speed, to solve a wide variety of dimensional measurement problems for large format parts
FlexPoint offers a unique combination of sensors, and CAD based programming, to solve a wide variety of dimensional measurement problems for large format parts.
The Multisensor Advantage – FlexPoint supports a wide range of tactile and non-contact sensors including SP25, TeleStar® Probe and SmartProbe® video sensor.
High Quality Construction – Stable transport design with carefully selected materials, rigid body members, air bearings on all axes, and active temperature compensation, to perform in shop floor environments.
Precise Compensation – Factory volumetric compensation using the Etalon® LaserTRACER system ensures the lowest possible uncertainty. In the field, machine accuracy verification can be performed according to ISO 10360.
Technical Data
XYZ Travel (mm)
Standard
7-Series – 700 x 700 x 600 mm
9-Series – 900 x 1200 x 800 mm
12-Series – 1200 x 1500 x 1000 mm
Optional
7-Series – Y axis, 1100 or 1500 mm
9-Series – Y axis, 1600 or 2000 mm
12-Series – Y axis, 2000 or 3000 mm
Optics
Fixed focal length single magnification objective lens with 12.5 x 9.5 mm field-of-view.
Illumination
Green LED oblique light with sector and intensity control
