C-Vision
Combining Video Measurement Speed with Optical Comparator Strength
c-vision™ Video Contour Projectors® from OGP combine the speed and accuracy of a video measurement system with the rugged capacity of an optical comparator to create the world’s best shop-floor measuring tools for 2D measurement. Video measurement systems offer high magnification and the speed of automatic measurement, using a high-resolution digital image. With 60% more magnification range than a standard comparator, users can accurately measure features up to 4 inches without refocusing the worktable, while still measuring fine details on parts. c-vision benchtop and floor models are built for large, heavy parts with a load capacity up to 250 lbs. c-vision systems come equipped with impressive capabilities such as a durable build, large screens for measurement versatility, innovative optics, long service life, and more, making it the perfect option for contour projection needs.
› Accurate Image with exceptionally low distortion over entire viewing area
› Shop hardened and convenient
› Create and run measurement routines, perform “walk-up and measure” tasks well as fitting the measurement data to 2D CAD for profile and GD&T analysis
› Simple but accurate operator controls for fast shop-floor measurements
› Internally mounted lenses with digital megapixel metrology cameras
› Tough construction, high load capacity, and large viewing screen for shop floor use
› Measure-X™ Compare virtual chart gage software displays both standard and custom overlay charts – direct from DXF CAD files
› Motorized XY table with precision linear scales and fine adjusters

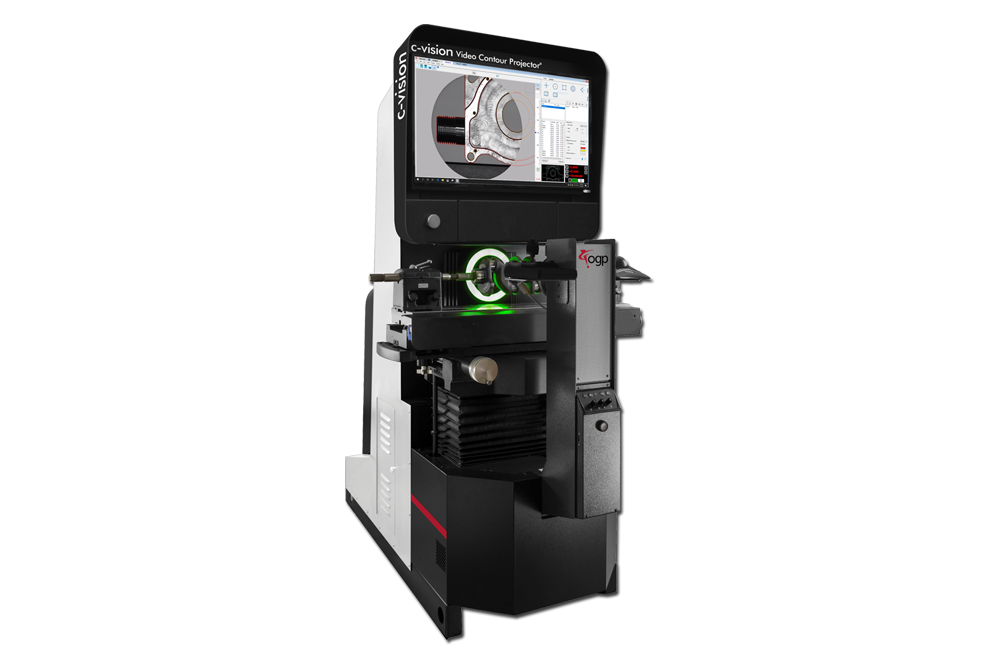

c-vision Floor Model Video Contour Projector
The ultimate, shop floor hardened, high payload capacity video contour projector
c-vision Benchtop Video Contour Projector
An easy-to-use, dual-magnification benchtop video contour projector
c-vision Lite Video Contour Projector
Easy-to-use, tri-magnification shop floor measuring system that fits one work bench
